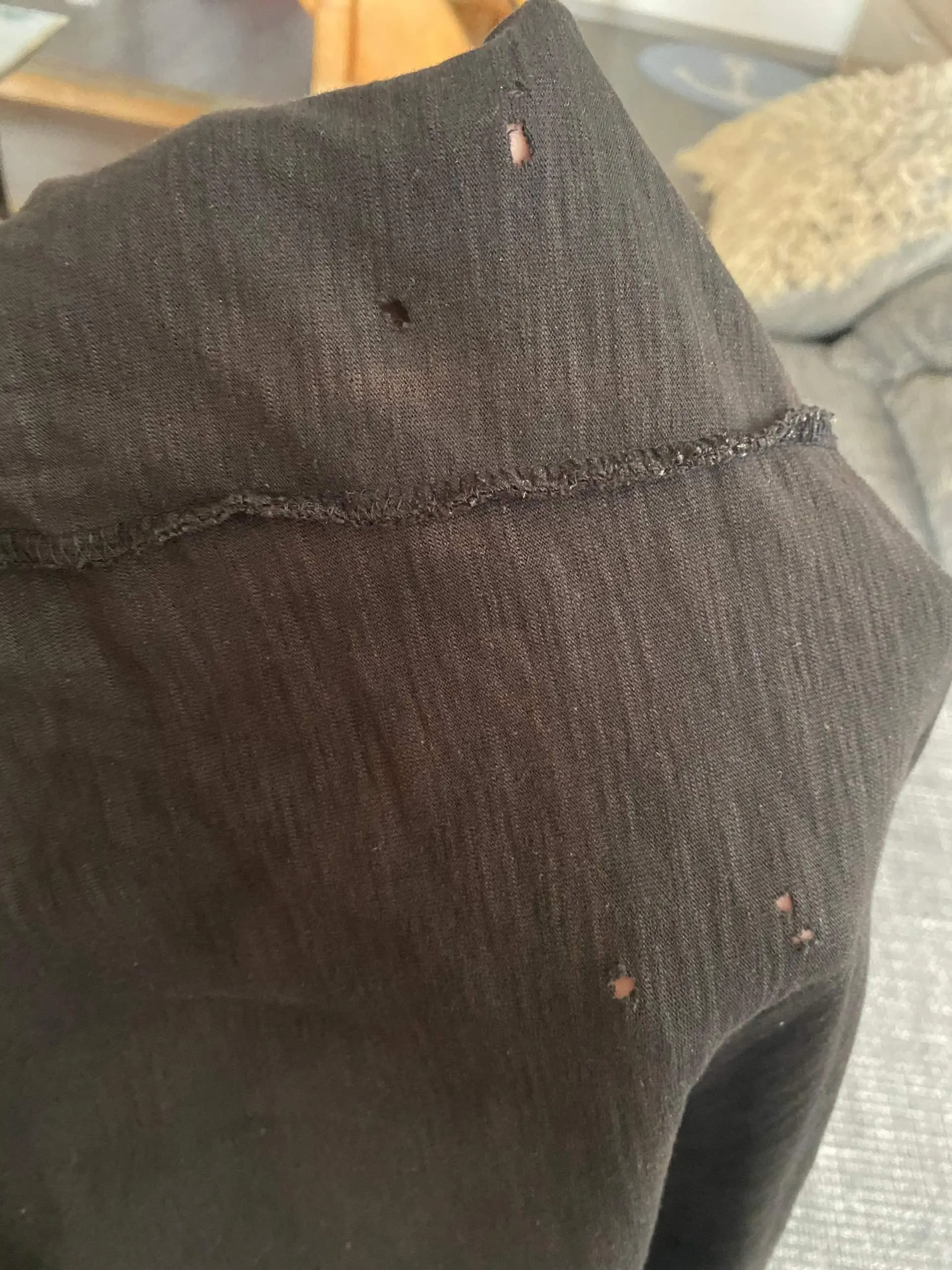

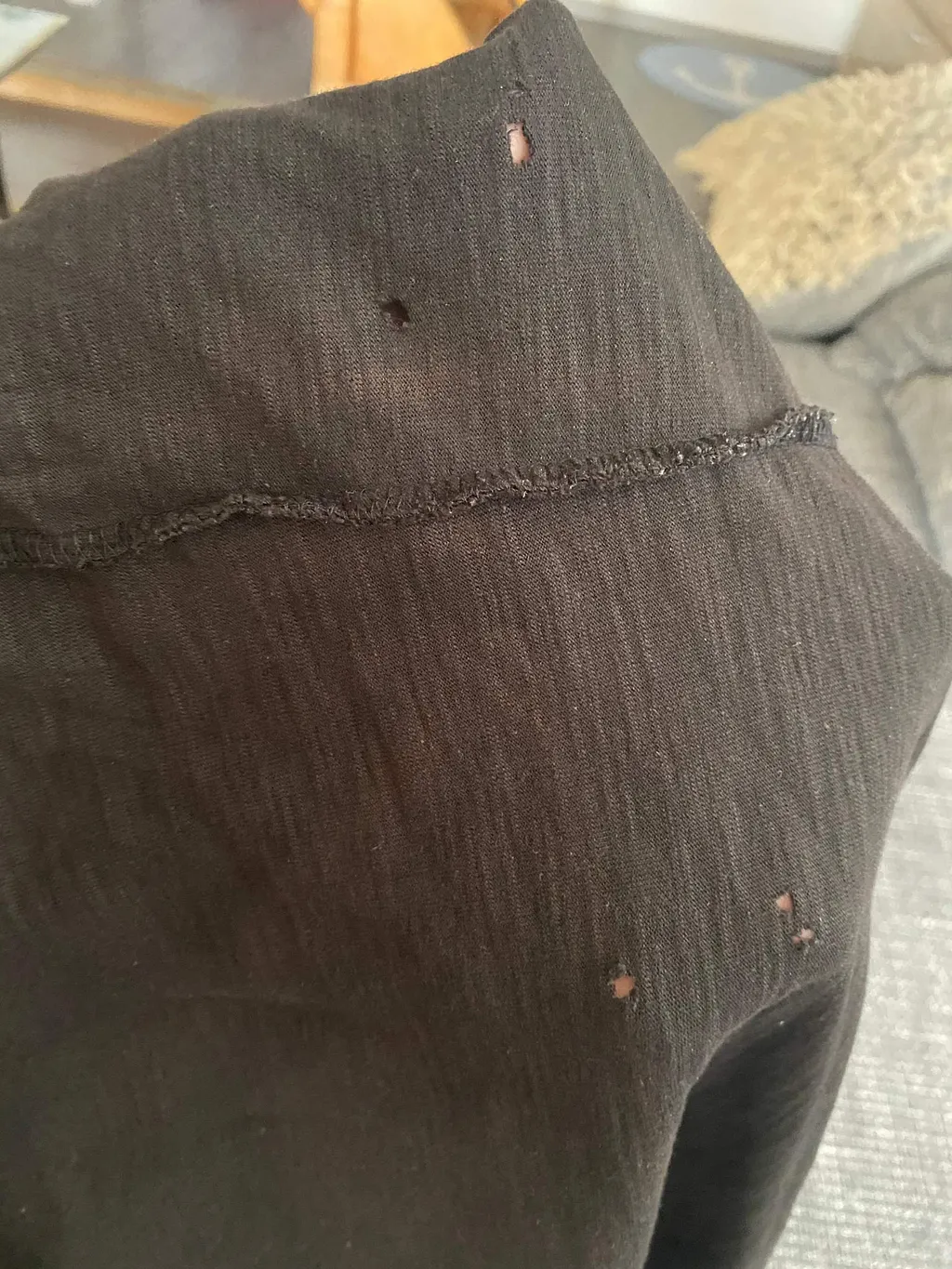

A customer once found visible needle holes along the seams of a black garment order. The same sewing process had been used on lighter styles without an obvious problem, so the first assumption was that something was wrong with the black fabric.

After checking the damaged seams, we found that the color was not the direct cause. The sewing line was using a standard sharp needle that was too thick for the knitted fabric. High sewing speed also increased needle heat.

Black fabric did not necessarily develop more damage. It simply made the broken yarns and exposed lighter fibers much easier to see.

This is the real reason needle holes in black fabric often create more complaints than similar defects on lighter garments.

Why Needle Holes in Black Fabric Look More Serious

A black surface creates strong contrast around damaged stitches. When a needle cuts or breaks a yarn, the inside of the yarn may appear lighter than the dyed surface. Stretching the seam makes these pale points even more visible.

Black and other dark colors can also make an irregular stitch line easier to inspect. Under direct lighting, every opening along the seam interrupts the otherwise uniform surface.

This leads to an important distinction:

Black fabric is not always more likely to be damaged, but it is less forgiving when damage occurs.

The actual causes usually come from the relationship between the fabric structure, needle point, needle size, machine speed, and needle temperature.

During garment quality control, dark garments should therefore be checked while the seam is relaxed and while it is gently stretched.

Needle Marks and Needle Damage Are Not the Same

Before changing the sewing process, the factory must identify what kind of problem it is seeing.

Temporary Needle Marks

A needle may push the knitted loops aside and leave small openings immediately after sewing. If the yarns are not broken, these marks may partially close after steaming, relaxation, or washing.

Needle Cutting

Needle cutting occurs when the needle damages or breaks the fabric yarn. The holes remain visible and may grow when the garment is stretched or washed.

Heat Damage

At high sewing speeds, friction can heat the needle. On fabrics containing polyester, elastane, or other synthetic fibers, excessive heat may weaken or melt fibers around the stitch.

These problems can look similar during a quick inspection, but the solutions are different. Steam may improve a temporary mark, but it cannot repair a broken yarn.

The First Cause: A Sharp Needle on Knitted Fabric

The sewing line had used a standard sharp needle.

A sharp point is designed to penetrate material directly. On some woven fabrics, that may be appropriate. On sweatshirt jersey, rib, fleece, and other knitted structures, it can cut through loops instead of moving between them.

We changed to a suitable ballpoint needle. Its rounded tip was better able to separate the knitted loops and pass between them, reducing yarn damage.

However, “use a ballpoint needle” is not a universal rule for every garment. The correct needle point depends on:

• Whether the fabric is knitted or woven
• The knitting density
• Yarn thickness
• Elastane content
• Fabric finishing
• Seam construction

This is why needle selection should be confirmed during the apparel sampling process, using the actual production fabric rather than a substitute.

The Second Cause: The Needle Was Too Thick

Needle point was only part of the problem. The needle size was also too large for the fabric structure.

A thicker needle creates a larger penetration area. On a tightly knitted black fabric, that can leave visible openings or place enough force on the loops to break them.

The smallest needle is not automatically the best choice either. A needle that is too fine may bend, deflect, skip stitches, or break during production.

The factory needs the smallest size that can sew the selected fabric and thread reliably at production speed.

For custom sweatshirt manufacturing, this should be confirmed with a sewing trial that checks both stitch quality and fabric damage.

The Third Cause: High Speed Increased Needle Heat

The sewing machines were running quickly to meet the production schedule. Continuous friction between the needle, thread, and fabric increased the needle temperature.

This can create several problems:

• The hot needle may weaken synthetic fibers.
• Melted residue may collect around the needle eye.
• Thread breakage may increase.
• Fabric yarns may become damaged around the stitch holes.
• The problem may become worse during long, uninterrupted sewing runs.

Reducing machine speed lowered the heat buildup. We also checked the needle condition more frequently because a worn or damaged needle creates additional friction.

Depending on the fabric and equipment, factories may also use needle-cooling systems or other approved heat-control methods. The solution should not introduce oil, chemical residue, or staining risks.

Needle heat is particularly important for black polyester blends and stretch fabrics, even when the garment feels mostly like cotton.

How We Reduced the Needle-Hole Problem

We made three practical changes on the sewing line.

1. Changed the Needle Point

The standard sharp needle was replaced with a ballpoint suitable for the knitted fabric. This allowed the needle to move between loops more effectively.

2. Reduced the Needle Size

We selected a finer needle that could still produce stable stitches with the required thread. The sewing team checked for skipped stitches, thread breakage, and seam strength before approving it.

3. Adjusted the Sewing Speed

The machine speed was reduced to limit needle heat. Operators also replaced worn needles more frequently instead of waiting for visible sewing failure.

After these changes, the visible holes were significantly reduced. The improvement came from matching the sewing conditions to the fabric, not from changing the black color.

What Buyers Should Check Before Bulk Sewing

A sewing sample that looks acceptable while lying flat may still show damage when the seam is stretched.

Before approving bulk production, buyers should ask the factory to:

• Use the actual bulk fabric for sewing trials.
• Confirm the needle point and size.
• Stretch the seam during inspection.
• Check for broken yarns under good lighting.
• Inspect the garment after relaxation or steaming.
• Repeat the check after washing.
• Monitor needle condition and machine speed during production.

For black garments, inspection should cover different sewing operations. A needle that works on a single-layer seam may behave differently at thick intersections, rib attachments, pockets, cuffs, or coverstitch hems.

A strong PP sample inspection should therefore evaluate the most difficult seam areas, not only the garment’s appearance and measurements.

Why This Matters in Bulk Production

A few visible needle holes can appear minor during production, but the commercial risk is larger.

If the fabric yarns are cut, washing and stretching may enlarge the damage. Buyers may then face customer complaints, poor product reviews, repairs, or rejected shipments.

Replacing the needle and adjusting the machine takes little time before bulk sewing. Repairing broken fabric yarns after hundreds of garments are finished is far more difficult.

An experienced clothing manufacturer should be able to explain why a particular needle system was selected and show that the seam remains stable after stretching and washing.

Final Takeaway

The black fabric in this case was not automatically weaker than the lighter fabric. It exposed the sewing damage more clearly.

The main causes were:

• An unsuitable sharp needle
• A needle size that was too large
• Excessive heat generated at high sewing speed

Changing to a suitable ballpoint needle, selecting a finer size, and controlling machine speed significantly reduced the defect.

The key lesson is:

Dark fabric does not always create more needle damage; it makes poor needle selection much harder to hide.

Preventing visible needle holes in black fabric requires sewing trials on the actual bulk material, followed by seam inspection under stretching, relaxation, and washing conditions.
