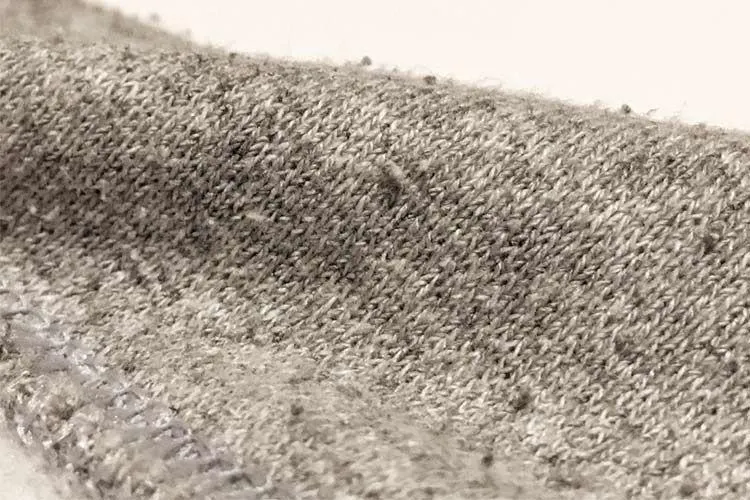

A customer contacted us after some sweatshirts developed small surface pills after only a few wears. The garments looked clean when they left the factory, but friction during normal use quickly exposed the problem.

The first assumption was that the fabric quality was simply poor. After reviewing the material and finishing process, however, we found three connected issues: too many short fibers in the yarn, overly deep brushing, and insufficient pilling performance control before production.

This case explains why sweatshirts pill after a few wears, and why softness should never be approved without checking durability.

Why Sweatshirts Pill After a Few Wears

Pilling begins when loose fibers move out of the yarn and rise to the fabric surface. Friction causes these fibers to become tangled. Instead of falling away, they remain attached and gradually form visible balls.

Sweatshirts are particularly exposed because they frequently rub against:

• The inside of jackets
• Backpack straps
• Chair backs
• Sleeves and side seams
• Other garments during washing

However, friction alone does not explain severe or premature pilling. A properly developed sweatshirt fabric should still meet the agreed performance standard for its intended use.

In this case, normal friction revealed weaknesses that were already present in the yarn and brushing process.

The First Cause: Too Many Short Fibers

The yarn contained a relatively high proportion of short fibers.

Short fibers have fewer contact points inside the yarn structure, so they can work their way toward the surface more easily during wear. Once exposed, they become available to tangle and form pills.

This is why two sweatshirt fabrics with the same composition and GSM can perform differently. A fabric labeled “100% cotton, 320 GSM” does not tell the buyer:

• The cotton fiber length
• Whether the cotton was combed
• The yarn spinning quality
• The yarn twist
• How securely the fibers are held inside the yarn

Using combed cotton can help because the combing process removes more short fibers and impurities. It generally produces a cleaner and more consistent yarn.

But “combed cotton” should not be treated as a guarantee of pilling resistance. Yarn construction, knitting density, brushing, and finishing still affect the final result.

During sweatshirt fabric sourcing, buyers should evaluate both the technical specification and the fabric’s tested performance.

The Second Cause: The Brushing Was Too Deep

The sweatshirt was designed to have a soft, warm interior. To create that feeling, the fleece side was brushed more aggressively.

Deeper brushing can improve the initial hand feel because it raises more fibers from the surface. However, it also leaves more loose fibers available to shed or become tangled.

This creates a common development conflict:

A softer first touch does not always mean better long-term performance.

When the brushing depth is excessive, the fabric may show:

• Heavy surface fuzz
• Fiber shedding
• Uneven fleece height
• Faster pilling in high-friction areas
• A noticeable change after washing

The solution is not necessarily to remove brushing. It is to control the brushing depth, number of passes, and surface uniformity.

For custom sweatshirt manufacturing, the approved hand feel should be balanced against the required pilling performance. Buyers should not approve softness as an isolated quality target.

Surface Fuzz, Shedding, and Pilling Are Different Problems

These three conditions are often described as “pilling,” but they are not the same.

Surface Fuzz

Surface fuzz is a layer of raised fibers that makes the fabric look slightly hairy. Some fuzz is normal on brushed fleece, especially before the first wash.

Fiber Shedding

Shedding happens when loose fibers detach from the fabric. Buyers may notice lint on an inner T-shirt or inside the washing machine.

Pilling

Pilling occurs when exposed fibers become tangled into small balls that remain attached to the fabric surface.

The correct solution depends on the actual problem. Reducing brushing may help with shedding, while changing the yarn or fabric construction may be necessary for serious pilling.

A useful garment quality control process should identify the defect correctly before asking the mill to change the fabric.

The Third Cause: Testing Was Not Defined Clearly Enough

The fabric had been approved mainly for color, GSM, composition, and hand feel. Pilling performance had not been controlled strongly enough before bulk production.

This is a common mistake. A fabric can look excellent on the cutting table and still perform poorly after repeated friction.

It is also not enough to request “good anti-pilling.” The buyer and supplier need to agree on:

• The test method
• The required grade
• The number of test cycles
• Whether testing is conducted before or after washing
• Which side of the fabric is tested
• Whether the standard applies to sample and bulk fabric

A pilling grade without these conditions is incomplete. Grade 4 under one method or cycle count cannot automatically be compared with Grade 4 under another.

Testing should begin during the apparel sampling process, then be repeated on representative bulk fabric when yarn, dye lot, supplier, or finishing conditions change.

How We Corrected the Problem

The correction involved three changes rather than one quick fabric treatment.

1. We Improved the Yarn Selection

We moved to a more controlled combed cotton yarn with fewer loose short fibers. The goal was to improve fiber retention, not simply add “combed cotton” to the specification sheet.

2. We Optimized the Brushing Process

The mill reduced the brushing intensity and adjusted the finishing process. The revised fabric remained soft, but the surface was cleaner and more stable.

This required a practical compromise. Approving the deepest possible brushing would have produced a softer first touch but increased the risk of poor wear performance.

3. We Added a Defined Pilling Test

The revised fabric was tested using the method and cycle count agreed for the order. It reached Grade 4 under those test conditions.

That wording matters. We do not treat “Grade 4” as a universal claim without identifying the test conditions behind it.

For future orders, the approved test result became part of the bulk fabric standard instead of relying only on visual inspection and hand feel.

What Buyers Should Check Before Bulk Production

Before approving brushed fleece or French terry for a sweatshirt order, buyers should ask:

• Is the yarn carded cotton, combed cotton, or a blend?
• Has pilling performance been tested?
• What method and cycle count were used?
• Is the result from sample fabric or actual bulk fabric?
• How heavily has the fleece side been brushed?
• Does the fabric shed after washing?
• Will the same mill and finishing process be used for bulk production?

These checks are especially important in private label sweatshirt production, where the customer may focus heavily on softness during sample approval.

A failed fabric can lead to customer returns, poor reviews, replacement requests, and disputes over whether the problem was caused by production or wear. Testing the material before cutting is usually far less expensive than investigating complaints after delivery.

Does Wearing Habit Affect Pilling?

Yes, but this point needs to be handled carefully.

Backpacks, rough outerwear, frequent washing, and repeated friction can make pills appear faster. Two customers wearing the same sweatshirt differently may see different results.

That does not remove the supplier’s responsibility. The fabric should still meet the agreed performance requirement for normal, intended use.

A factory should not answer a legitimate complaint by simply blaming the wearer. It should check where the pilling occurred, how quickly it developed, and whether the approved fabric passed the required test.

This distinction is important in OEM clothing manufacturing: wear conditions influence the speed of pilling, but material selection determines how well the garment resists it.

Final Takeaway

This case was not solved by adding more softener or describing the fabric as “higher quality.” The real improvement came from reducing short fibers, controlling the brushing depth, and defining the pilling test before production.

The most important lesson is:

Softness should be approved together with durability, not separately.

Understanding why sweatshirts pill after a few wears requires looking beyond GSM and composition. Yarn quality, brushing, fabric construction, testing conditions, and actual use all affect the final result.
